In the world of electromagnetic solutions, the integrity and performance of components such as electric motors, stators, and rotors are paramount, especially in mission-critical applications where reliability and longevity are non-negotiable. One of the key processes that contribute to the enhanced performance and durability of these components is Vacuum Pressure Impregnation (VPI), facilitated by VPI tanks. At Windings Inc., our commitment to providing high-quality, custom electromagnetic solutions is underscored by our advanced VPI capabilities, which offer significant benefits to our customers across various industries, including aerospace, defense, energy, and automotive sectors.
What is VPI?
Vacuum Pressure Impregnation (VPI) is a sophisticated process used to enhance the insulation and structural integrity of windings in electric motors and other electromagnetic components. During this process, components are submerged in an insulating resin under vacuum and pressure, ensuring that the resin thoroughly penetrates all voids and gaps within the windings. The impregnated components are then cured, resulting in a uniform, solid insulation layer that significantly improves the electrical, mechanical, and thermal properties of the component.
The VPI process is critical for ensuring that motors and other electromagnetic components can withstand harsh operating environments, resist electrical breakdowns, and maintain optimal performance over extended periods. Unlike other insulation methods such as trickle or dip impregnation, VPI ensures complete saturation and bonding of the resin, which is particularly beneficial for components exposed to high levels of mechanical stress or extreme environmental conditions.
The Importance of Insulation in Electromagnetic Components
Electrical insulation is a critical aspect of motor design, directly influencing the performance, efficiency, and lifespan of the motor. Poor insulation can lead to several issues, including partial discharge, which can degrade the insulation over time and cause electrical failures. This is particularly problematic in high-voltage applications, where even minor insulation failures can lead to catastrophic outcomes.
By utilizing VPI, Windings Inc. ensures that the insulation within our motors is robust and capable of withstanding the operational stresses encountered in real-world applications. The VPI process effectively seals the windings, protecting them from moisture, contaminants, and mechanical wear. This results in motors that are not only more reliable but also capable of operating efficiently over longer periods, reducing the need for maintenance and lowering the total cost of ownership for our customers.
Benefits of VPI Tanks at Windings Inc.
Windings Inc. employs advanced VPI tanks as part of our manufacturing and assembly process, offering a range of benefits that enhance the performance and reliability of the components we produce.
1. Improved Electrical Insulation
One of the primary benefits of VPI is the substantial improvement in electrical insulation. The VPI process ensures that the insulating resin penetrates deeply into the windings, filling all microscopic voids and gaps. This thorough impregnation minimizes the risk of partial discharge, which can lead to insulation breakdown and eventual failure of the component. By reducing the likelihood of such electrical failures, VPI enhances the overall reliability and lifespan of the motors and other components produced by Windings.
The enhanced insulation also means that motors can operate at higher voltages without the risk of electrical arcing or insulation failure. This is particularly important in industries such as aerospace and defense, where equipment is often subject to extreme electrical demands. By ensuring that the insulation is robust and capable of handling these conditions, Windings Inc. provides our customers with peace of mind, knowing that their equipment will perform reliably even in the most demanding environments.
2. Enhanced Thermal Conductivity
The VPI process also contributes to improved thermal conductivity in electric motors and other electromagnetic components. The uniform resin layer created during VPI acts as an effective thermal conduit, helping to dissipate heat generated during operation more efficiently. This reduction in operating temperature is crucial for maintaining the performance and extending the service life of components, especially in applications where high thermal loads are present.
Thermal management is a critical aspect of motor design, particularly in high-performance applications where excessive heat can lead to decreased efficiency, premature failure, and increased wear on components. By improving thermal conductivity, VPI helps to keep motors running cooler, which not only enhances performance but also reduces the risk of heat-related failures. This is especially beneficial in applications such as electric vehicles and aerospace, where maintaining optimal thermal conditions is essential for both safety and performance.
3. Increased Mechanical Strength
Mechanical strength is another critical factor in the durability and reliability of electromagnetic components. The VPI process significantly enhances the mechanical integrity of windings by bonding them together and reinforcing their structure. This added strength makes the components more resistant to mechanical stresses such as vibration, shock, and centrifugal forces, which are common in high-speed and high-torque applications.
In many industrial applications, motors are subjected to harsh operating conditions that can cause significant mechanical stress. For example, motors used in oil and gas drilling operations must withstand high levels of vibration and shock, while those used in aerospace applications must be capable of enduring the extreme forces encountered during flight. The increased mechanical strength provided by VPI ensures that these components can handle these stresses without compromising performance or reliability.
Additionally, the enhanced mechanical strength provided by VPI helps to prevent issues such as coil movement, which can occur when windings are subjected to repeated mechanical stress. Coil movement can lead to abrasion and eventual failure of the insulation, but by effectively bonding the windings together, VPI minimizes the risk of such problems, further enhancing the longevity of the motor.
4. Superior Environmental Protection
Components treated with VPI are better protected against environmental factors such as moisture, chemicals, and corrosive elements. The solidified resin forms a robust barrier that prevents the ingress of contaminants, which could otherwise lead to corrosion, short circuits, and other forms of degradation. This environmental protection is particularly valuable in industries like oil and gas, where components are often exposed to harsh and corrosive conditions.
In environments where moisture and chemicals are prevalent, such as in marine or chemical processing applications, the risk of corrosion and electrical failure is significant. VPI provides a critical line of defense against these threats by creating a hermetic seal around the windings, ensuring that the motor remains protected even in the most challenging conditions. This not only extends the life of the motor but also reduces the need for costly maintenance and repairs.
Furthermore, VPI-treated components are more resistant to thermal cycling, which can cause expansion and contraction of materials, leading to the formation of cracks and other defects. By preventing these issues, VPI ensures that motors can maintain their integrity and performance over a wider range of operating temperatures.
5. Reduced Maintenance and Downtime
The durability and reliability imparted by the VPI process result in components that require less frequent maintenance and experience fewer unexpected failures. This reduction in maintenance needs translates to lower operating costs and increased uptime, which is particularly advantageous for mission-critical applications where downtime can be extremely costly.
For industries such as aerospace, defense, and energy, where equipment downtime can have significant financial and operational impacts, the ability to reduce maintenance and extend the operational life of components is invaluable. By investing in VPI-treated components from Windings Inc., customers can benefit from increased equipment reliability and reduced total cost of ownership.
Moreover, the reduced maintenance requirements also mean that equipment can be kept in service for longer periods without the need for costly and time-consuming inspections and repairs. This is particularly beneficial in remote or difficult-to-access locations, where maintenance operations can be challenging and expensive.
6. Custom Solutions Tailored to Specific Needs
Windings Inc. recognizes that different applications have unique requirements, which is why our VPI process can be customized to meet specific needs. Whether it's adjusting the type of resin used, the curing process, or the pressure and vacuum parameters, we tailor our VPI process to optimize the performance of each component for its intended application. This customization ensures that our clients receive solutions that are perfectly aligned with their operational goals.
Our ability to customize the VPI process allows us to meet the specific requirements of a wide range of industries and applications. For example, in the automotive industry, where electric motors are increasingly being used in hybrid and electric vehicles, the ability to optimize the VPI process for specific performance characteristics can lead to significant improvements in efficiency and reliability.
In the aerospace industry, where weight and size constraints are critical, our VPI process can be tailored to produce components that are both lightweight and durable, without compromising on performance. This level of customization is a key differentiator for Windings Inc., allowing us to provide our customers with solutions that are not only high-quality but also perfectly suited to their specific needs.
Capabilities of Windings’ VPI Tanks

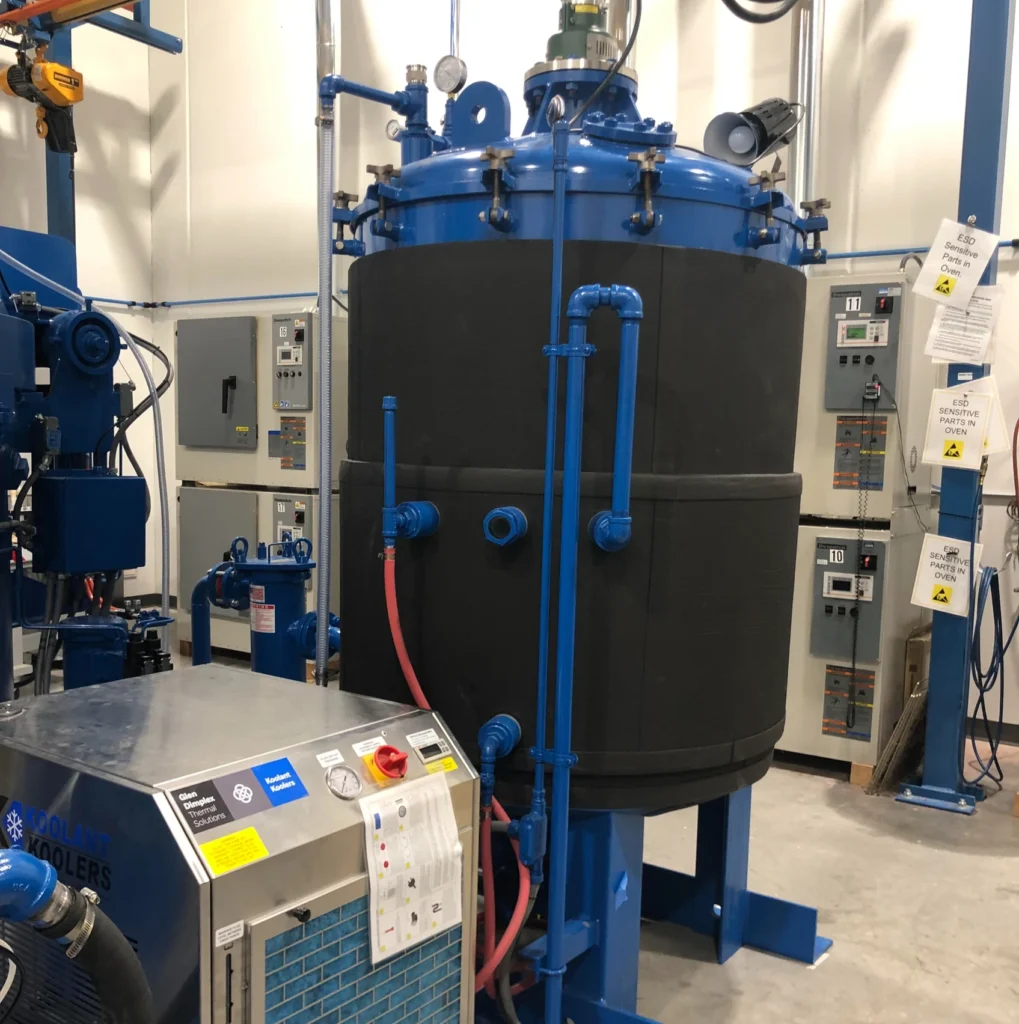

Windings Inc. has invested in state-of-the-art VPI tanks, enabling us to handle a wide range of component sizes and specifications. Our VPI tanks are designed to accommodate both small and large components, making them suitable for a variety of applications from small precision motors to large industrial generators.
Versatility in Application
Our VPI tanks are versatile and capable of processing components across different industries, including aerospace, defense, automotive, and energy. This versatility allows us to serve a broad spectrum of customers, each with unique operational challenges and requirements. For example, in the aerospace industry, where components must operate reliably under extreme conditions, VPI-treated components provide the necessary durability and performance.
The ability to handle such a wide range of applications means that Windings Inc. can offer VPI services to customers across many industries, each with its own specific requirements and challenges. Whether it's providing high-performance motors for the automotive industry, durable components for the energy sector, or mission-critical systems for defense, our VPI capabilities ensure that our customers receive the best possible solution for their needs.
Precision Control
The VPI process at Windings Inc. is precisely controlled to ensure consistent quality and performance. Parameters such as vacuum level, pressure, temperature, and resin viscosity are meticulously monitored and adjusted to achieve optimal results. This precision is crucial in applications where even the smallest imperfections can lead to significant performance issues.
By maintaining precise control over the VPI process, we ensure that every component we produce meets the highest standards of quality and reliability. This is particularly important in industries such as aerospace and defense, where even minor defects can have serious consequences. Our commitment to precision and quality control is one of the reasons why Windings Inc. is a trusted partner for some of the most demanding applications in the world.
Large-Scale Processing
Our VPI tanks are capable of handling large-scale production runs, making them ideal for projects that require high volumes of consistent, high-quality components. Despite the scale, we maintain strict quality control measures throughout the process, ensuring that each component meets our exacting standards.
Large-scale processing capabilities are essential for industries such as automotive and energy, where high volumes of components are required to meet production demands. Our ability to handle large-scale production runs without compromising on quality ensures that we can meet the needs of these industries while maintaining the high standards of reliability and performance that our customers expect.
Advanced Resin Technologies
Windings Inc. utilizes the latest advancements in resin technology to further enhance the benefits of the VPI process. These advanced resins offer superior electrical, thermal, and mechanical properties, and are selected based on the specific requirements of the application. This approach ensures that our customers receive components that are not only reliable but also optimized for their particular operational environment.
By staying at the forefront of resin technology, Windings Inc. ensures that our VPI process delivers the best possible results for our customers. Whether it's improving thermal conductivity, enhancing mechanical strength, or providing superior environmental protection, our use of advanced resins ensures that our components are built to perform at the highest level.
Real-World Applications of VPI at Windings Inc.
The effectiveness of the VPI process at Windings Inc. can be demonstrated through various applications across the industries we serve.
Aerospace Applications
In the aerospace industry, components are frequently exposed to extreme conditions, including high altitudes, rapid temperature changes, and intense mechanical forces. For instance, motors used in satellite deployment mechanisms or aircraft systems must operate flawlessly under these conditions to ensure mission success. Windings Inc. has supplied VPI-treated motors that provide superior reliability and performance, helping to ensure the safe operation of critical aerospace systems.
Our VPI process has been instrumental in the production of components that meet the rigorous standards of aerospace applications. By enhancing the insulation, thermal management, and mechanical strength of these components, we ensure that they can withstand the demanding environments in which they operate. This has made our VPI-treated components a trusted choice for aerospace manufacturers who require the highest levels of reliability and performance.
Automotive Applications
As the automotive industry increasingly shifts towards electric and hybrid vehicles, the demand for high-efficiency motors that can operate reliably under varying conditions has grown. VPI-treated motors from Windings Inc. have been used in electric drivetrains, where their enhanced thermal conductivity and insulation properties contribute to better performance and longer lifespan.
In electric and hybrid vehicles, maintaining optimal thermal conditions is critical to ensuring the efficiency and longevity of the motor. Our VPI process helps to achieve this by improving the thermal management of the motor, allowing it to operate at peak efficiency even under heavy loads. This has led to improved vehicle performance and reduced maintenance requirements, making our VPI-treated motors an ideal choice for the next generation of automotive powertrains.
Oil and Gas Applications
In the oil and gas industry, downhole motors and other components must endure extreme temperatures, high pressures, and corrosive environments. Windings Inc. has utilized VPI to enhance the durability and performance of these components. For example, VPI-treated motors used in downhole drilling tools are capable of withstanding temperatures of up to 260°C and pressures as high as 15,000 psi, ensuring reliable operation in some of the harshest conditions on earth.
The ability to operate reliably in such extreme conditions is essential for the success of oil and gas exploration and production. By utilizing the VPI process, Windings Inc. has been able to provide motors that not only survive but thrive in these environments, helping our customers achieve their operational goals with greater efficiency and lower costs.
Energy Sector Applications
In the renewable energy sector, where reliability and efficiency are paramount, VPI-treated components play a critical role. For example, in wind turbines, the motors and generators must operate continuously for long periods while exposed to the elements. The enhanced insulation and mechanical strength provided by the VPI process ensure that these components can withstand the rigors of continuous operation, contributing to the overall efficiency and reliability of the turbine.
Windings Inc. has supplied VPI-treated components to wind turbine manufacturers, helping to improve the reliability and efficiency of their systems. By ensuring that these components can operate continuously with minimal maintenance, we contribute to the growth and success of renewable energy initiatives.
Conclusion
At Windings Inc., our VPI tanks are more than just equipment; they are a critical part of our commitment to delivering top-tier electromagnetic solutions. The benefits of VPI, from enhanced electrical insulation to increased mechanical strength and superior environmental protection, make it an invaluable process for producing high-performance, durable components that meet the stringent demands of industries such as aerospace, defense, energy, and automotive.
By investing in advanced VPI technology and tailoring our processes to meet the specific needs of our customers, Windings Inc. continues to set the standard for excellence in the electromagnetic solutions industry. Whether you require components for mission-critical applications or are looking to enhance the performance and reliability of your products, our VPI capabilities offer a proven path to achieving your goals.
Our state-of-the-art VPI tanks, combined with our expertise in advanced resin technologies and precision control, enable us to deliver customized solutions that meet the specific needs of our customers across a wide range of industries. From aerospace to energy, our VPI-treated components have consistently demonstrated their ability to perform reliably in the most demanding environments.
As we continue to innovate and expand our VPI capabilities, Windings Inc. remains committed to providing our customers with the highest quality electromagnetic solutions. Whether you're looking to improve the performance of your existing equipment or need a custom solution for a new application, our VPI process offers the reliability, durability, and performance you need to succeed.
Contact us today to learn more about how our VPI capabilities can help you achieve your operational goals and ensure the long-term success of your projects.
