In the world of advanced manufacturing, precision and efficiency are paramount—especially when creating critical components for industries like aerospace, defense, and energy. One of the key technologies that enable this level of accuracy is laser cutting. As an essential tool in the production of custom electric motors, stators, rotors, and electromagnetic components, laser cutting allows for a seamless balance between design flexibility, material efficiency, and high performance.
At Windings Inc., we pride ourselves on delivering world class custom-engineered electromagnetic solutions, and laser cutting is integral to that mission. This blog post explores the fundamentals of laser cutting, its application in electromagnetic component manufacturing, and how it enhances precision in the design and production of electric motors and generators.
1. The Basics of Laser Cutting in Manufacturing

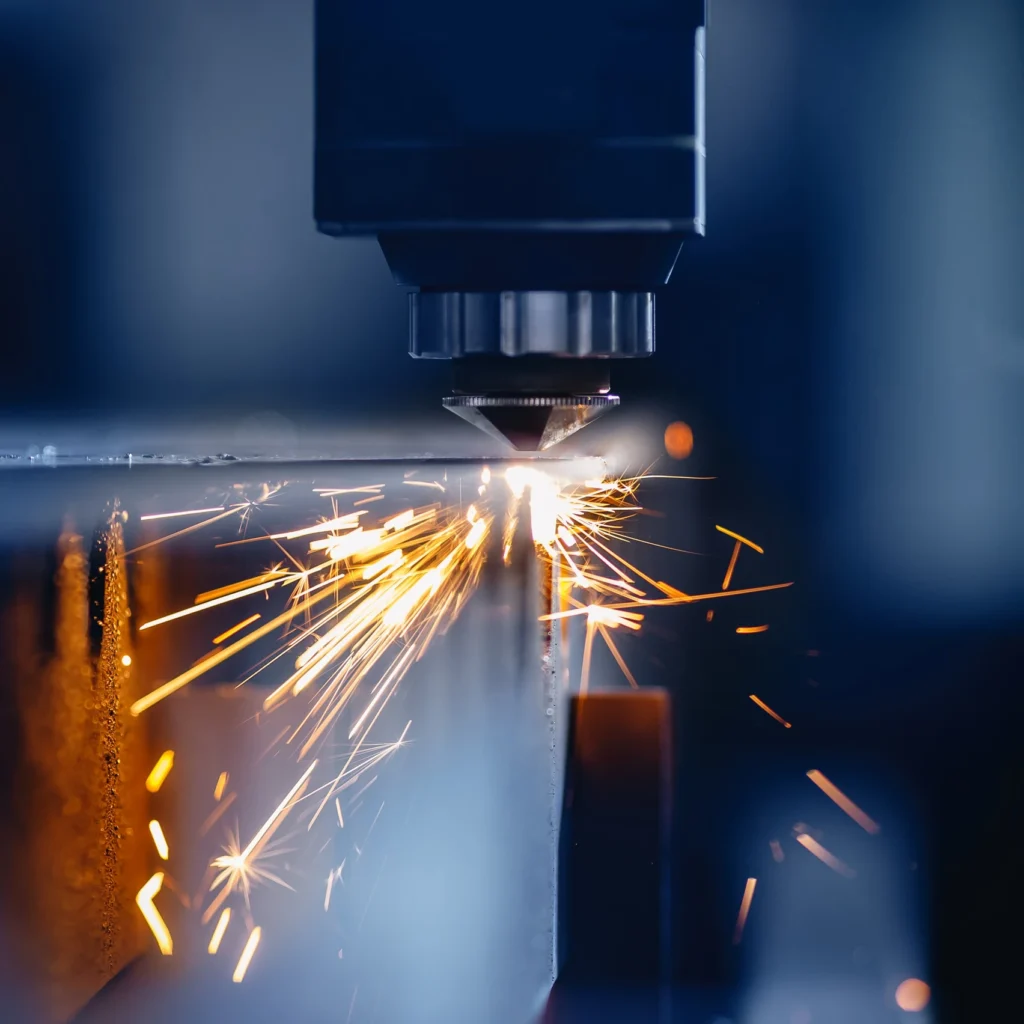

Laser cutting involves focusing a high-energy laser beam onto a material, generating intense heat that melts, burns, or vaporizes the material to create precise cuts. Controlled by computer numerical control (CNC) systems, the laser beam can achieve remarkable accuracy, making it ideal for intricate geometries often required in the production of electric motors and other high-performance components.
Laser cutting technology can be divided into several types based on the laser source:
CO2 lasers: Primarily used for cutting non-metallic materials like plastic, wood, and glass.
Fiber lasers: Best suited for cutting metals, such as stainless steel, aluminum, and copper, which are commonly used in electric motor production.
Nd lasers: Typically used for thick metals or high-energy applications.
2. The Role of Laser Cutting in Electromagnetic Solutions
Windings Inc. specializes in custom electromagnetic solutions for industries with demanding requirements, such as aerospace, defense, and advanced air mobility. In these fields, the need for precision and reliability is crucial, and laser cutting plays a vital role in meeting those needs.
a) Precision in Stator and Rotor Laminations
The stator and rotor are core components of electric motors and generators. They are composed of thin steel laminations stacked together to form the motor’s core. These laminations minimize energy losses due to eddy currents, increasing motor efficiency—an essential factor for industries where every watt counts, such as aerospace or electric vehicle propulsion.
Laser cutting excels in producing these laminations with exacting precision. The technology allows for the creation of intricate designs with minimal burrs or imperfections, which is critical for maintaining the performance and efficiency of the motor. High-speed laser systems can cut complex geometries at a rapid pace while maintaining consistent accuracy, ensuring that even small motors with unique designs, such as those used in advanced air mobility or military drones, function reliably under extreme conditions.
b) Custom Motor Prototyping and Production
For many of Windings' customers, the ability to develop custom motor prototypes rapidly is a key advantage. Whether it's for new product development or testing performance in mission-critical applications, laser cutting helps accelerate the prototyping phase. With laser cutting, intricate components like custom stator cores, rotor assemblies, and complex lamination stacks can be produced quickly and accurately, allowing engineers to test new designs and optimize performance.
For instance, in the aerospace and defense industries, electric motors must withstand extreme temperatures, pressures, and mechanical stresses while maintaining high efficiency. The precision of laser cutting ensures that even the most complex geometries required for high-torque, high-speed motors are manufactured to exact specifications, improving overall performance and reliability.
3. Advantages of Laser Cutting for High-Performance Electric Motors
Laser cutting offers numerous advantages over traditional manufacturing techniques, particularly for industries where precision, material efficiency, and customization are essential.
a) Increased Precision and Accuracy
Laser cutting allows manufacturers to achieve tolerances as tight as ±0.001 inches, which is particularly important in the production of components like rotor and stator laminations. Precise cuts ensure that the electromagnetic fields generated by the motor are optimized, minimizing energy losses and enhancing the overall efficiency of the motor.
For high-performance applications, such as in aerospace or advanced air mobility, precision can make the difference between success and failure. Even minor imperfections in the motor’s components can lead to inefficiencies or premature failure in critical systems. With laser cutting, Windings Inc. can ensure that every component meets the stringent quality standards required by these industries.
b) Versatility Across Materials
The flexibility of laser cutting makes it an ideal solution for cutting a wide range of materials commonly used in electric motors, such as steel, copper, aluminum, and various alloys. Whether manufacturing lightweight aluminum rotors for electric vehicles or high-strength steel laminations for industrial generators, laser cutting ensures precise, clean cuts without damaging the material.
Additionally, fiber lasers, which are widely used in the cutting of metals, offer faster cutting speeds and greater energy efficiency compared to traditional cutting methods. This is especially beneficial in high-volume production runs where both time and material savings are critical.
c) Reduced Material Waste
One of the key benefits of laser cutting is the reduced material waste. In industries like defense and aerospace, where high-quality materials such as titanium and rare-earth magnets are often used, minimizing waste can significantly reduce costs. Laser cutting's ability to create highly accurate cuts with narrow kerfs (the width of the cut) means that more of the raw material is utilized, resulting in less scrap.
This feature is especially important when working with expensive or rare materials, such as those used in high-performance electric motors for aerospace applications, where every gram of material saved can have a meaningful impact on overall system efficiency.
d) High Repeatability for Mass Production
In addition to its precision, laser cutting also offers excellent repeatability, making it ideal for mass production. The use of CNC-controlled laser systems allows for consistent results across large production runs, ensuring that every part meets the same high standards of quality and performance.
For customers in industries like automotive or energy, where scalability and reliability are key, this repeatability ensures that components perform consistently, even in high-stress environments. The precision and repeatability of laser cutting also help streamline quality control, reducing the time spent on inspections and rework.
4. Applications of Laser Cutting in High-Performance Industries
Laser cutting is employed in a wide range of industries, each of which benefits from the technology’s unique capabilities in different ways. Here are a few examples of how laser cutting is applied in high-performance sectors.
a) Aerospace and Advanced Air Mobility
In aerospace, every component must meet the highest standards of precision and reliability. Laser cutting is used extensively to produce parts such as turbine blades, engine components, and airframe parts, where lightweight materials and tight tolerances are critical.
For electric propulsion systems, such as those used in drones or electric vertical takeoff and landing (eVTOL) vehicles, laser-cut rotor and stator laminations are essential for achieving the high torque and efficiency needed for reliable flight.
b) Defense
In defense, mission-critical applications often demand custom electric motors that can operate in extreme environments, including high temperatures, pressures, or underwater conditions. Laser cutting ensures that these components are manufactured with the precision required for such harsh conditions. For instance, motors designed for military vehicles or weapons systems must be lightweight, powerful, and reliable. The precision of laser cutting helps achieve these characteristics.
c) Automotive and Electric Vehicles
Laser cutting is widely used in the production of electric vehicle (EV) motors, where it enables manufacturers to create high-efficiency, lightweight components that improve the vehicle’s range and performance. The ability to cut lightweight materials like aluminum and copper with precision is key to producing motors that offer high power density without increasing weight.
Moreover, as the demand for electric vehicles grows, laser cutting's scalability ensures that automakers can keep pace with production demands while maintaining the highest quality standards.
5. The Future of Laser Cutting in Manufacturing
As industries continue to evolve, the demand for even greater precision and performance will drive advancements in laser cutting technology. Several key trends are likely to shape the future of laser cutting:
a) Increased Automation
The integration of laser cutting systems with robotics and artificial intelligence will enhance both the speed and accuracy of production. Automated systems can reduce the need for human intervention, allowing for 24/7 production and increasing overall efficiency.
b) Advanced Materials
As industries like aerospace and automotive increasingly turn to advanced materials such as carbon fiber composites, laser cutting technology will need to evolve to handle these materials with even greater precision. Research into new laser sources and cutting techniques will enable manufacturers to work with harder-to-cut materials while maintaining high efficiency.
c) Sustainability Initiatives
As companies strive to reduce their environmental footprint, laser cutting offers a more sustainable option compared to traditional methods like mechanical cutting. Its ability to minimize material waste and energy consumption aligns with broader trends toward greener manufacturing practices. Moreover, as renewable energy sources become more prevalent, laser cutting systems powered by clean energy will further reduce the environmental impact of production.
Conclusion
At Windings Inc., laser cutting is an indispensable tool that enables us to meet the stringent requirements of our clients across industries like aerospace, defense, and automotive. By leveraging the precision, efficiency, and versatility of laser cutting, we can continue to provide custom electromagnetic solutions that deliver unmatched performance in mission-critical applications. As technology evolves, laser cutting will remain at the forefront of advanced manufacturing, driving innovation and enabling the next generation of high-performance electric motors and components.
