Introduction
In the oil and gas industry, electric motors and alternators are essential for efficient drilling operations. However, these environments present significant challenges due to extreme temperatures, high pressures, and corrosive substances. This blog post explores these environmental factors and the mechanical solutions developed by electromagnetic manufacturers to mitigate these challenges.
Environmental Challenges in Oil and Gas Drilling
Electric motors and alternators used in oil and gas drilling must withstand harsh conditions, including extreme temperatures, high pressures, and corrosive environments.
Extreme Temperatures: Drilling operations often encounter temperatures exceeding 200°C. Such high temperatures can degrade the insulation materials in electric motors, reducing their efficiency and lifespan. Permanent magnets used in motors are also at risk of demagnetizing at high temperatures.

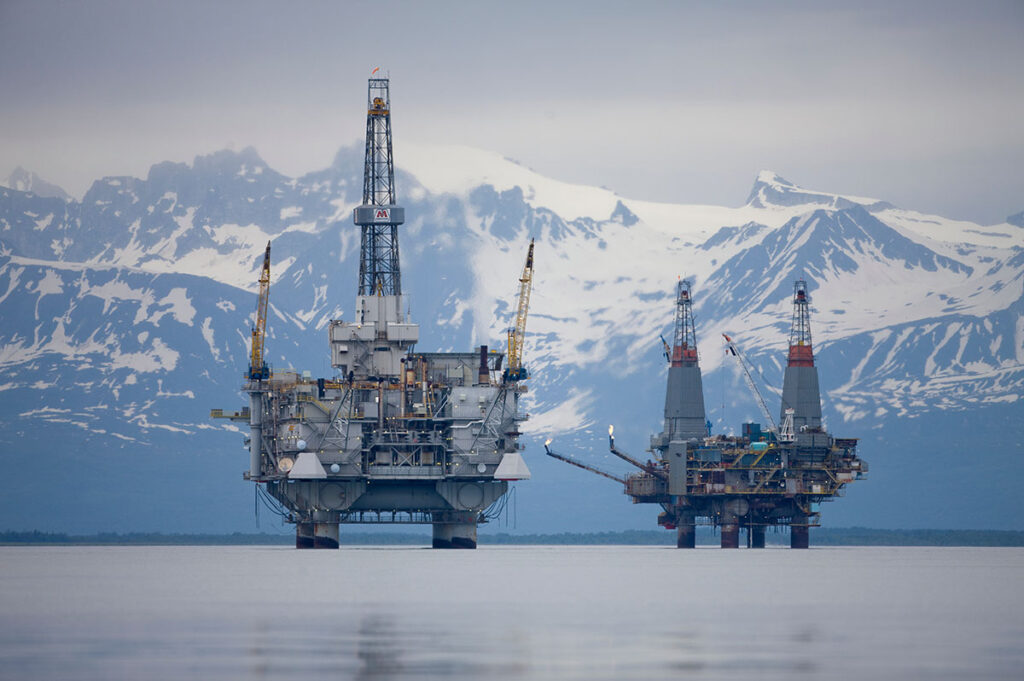

High Pressures: Both onshore and offshore drilling environments subject equipment to pressures up to 30,000 psi. These pressures can cause mechanical failures if the motors are not adequately reinforced. High pressure can also deform components, leading to misalignment and operational inefficiencies.
Corrosive Substances: Drilling fluids and downhole environments often contain chlorides, saltwater, and other corrosive substances. These can lead to the corrosion of metal components, compromising the integrity of electric motors. Corrosion can lead to catastrophic failures if not addressed properly, affecting both safety and operational efficiency.
Mechanical Solutions for Enhanced Durability
To combat these environmental challenges, manufacturers have developed several mechanical solutions:
Advanced Insulation Systems: Modern electric motors used in drilling are equipped with high-performance insulation systems. These systems are designed to withstand extreme temperatures, ensuring the motor's longevity and reliability. For example, insulation materials like polyimide and PEEK (Polyether Ether Ketone) are used for their excellent thermal stability and resistance to chemical degradation.
High-Strength Materials: Components such as rotors and stators are manufactured using high-strength materials like stainless steel, titanium alloys, and carbon fiber. These materials provide excellent resistance to high pressures and corrosive environments. Titanium alloys, in particular, offer a good balance between strength, weight, and corrosion resistance, making them ideal for high-stress applications.
Enhanced Magnet Retention: Permanent magnets are essential in brushless DC (BLDC) motors used in drilling. To prevent magnet displacement under high rotational speeds and temperatures, manufacturers use advanced retention methods such as metal alloy sleeves and synthetic fiber roving. These retention methods ensure that magnets remain securely in place, even under the most demanding conditions.
Innovative Approaches to Magnet Retention
Magnet retention is a critical aspect of motor design in the oil and gas industry. Here are some innovative approaches:
Metal Alloy Sleeves: These sleeves are machined to tight tolerances and fitted over the rotor. They provide a robust method of securing the magnets while maintaining a minimal air gap, which is crucial for motor efficiency. Common materials for these sleeves include stainless steel and Inconel, chosen for their high yield strength and resistance to thermal expansion.
Synthetic Fiber Roving: This method involves wrapping high-tension synthetic fibers around the magnets. Materials such as carbon fiber and Kevlar® offer superior strength-to-weight ratios and excellent thermal stability, making them ideal for high-performance applications. Carbon fiber, in particular, provides high tensile strength and low thermal expansion, ensuring reliable magnet retention without adding significant weight.
Reverse Keystone Slots: Some designs feature reverse keystone slots in the outer surface of the rotor. Flanged magnets slide into these slots and are contained at either end, providing a secure mechanical lock that supplements adhesive bonds. This method is particularly useful in applications where high centrifugal forces are expected.
Material Properties and Priorities
For each material considered in magnet retention, design engineers evaluate the following properties:
Yield Strength: The ability of a material to withstand stress without permanent deformation.
Density: The mass per unit volume, which impacts the overall weight of the motor.
Thermal Conductivity: The ability to conduct heat, affecting the motor's ability to dissipate heat generated during operation.
Resistivity: The degree to which a material resists the flow of electric current, which affects efficiency and heat generation.
Maximum Operating Temperature: The highest temperature at which the material can operate without degrading.
Conclusion
The oil and gas industry presents numerous environmental challenges for electric motors and alternators. By leveraging advanced materials, innovative insulation systems, and cutting-edge magnet retention techniques, manufacturers are able to produce motors that withstand the rigors of drilling operations. These technological advancements not only enhance the reliability and efficiency of the equipment but also contribute to the overall productivity and safety of drilling operations.
